Many don’t realize the intense linkage between performance and design here at REL. Performance is everything to us and so it drives physical design revisions. Our engineers, recognizing the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.
Technical Specifications

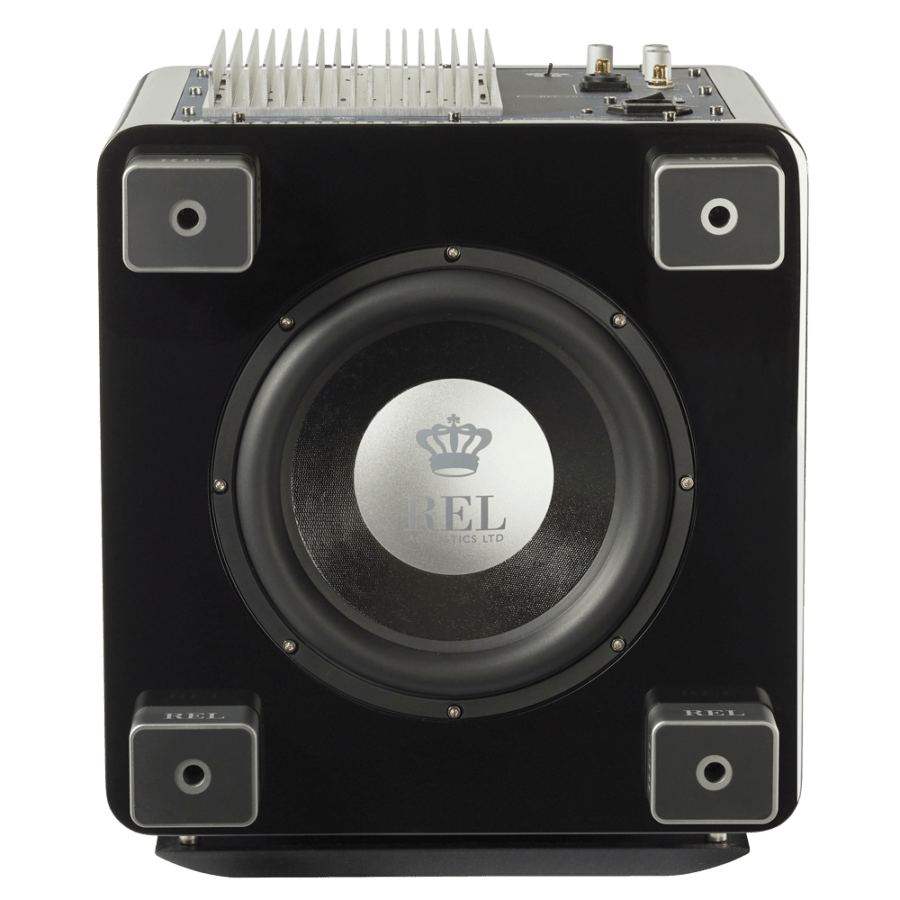

Front-firing active driver, down-firing passive
10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis
10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis
-6dB at 27 Hz Low Frequency

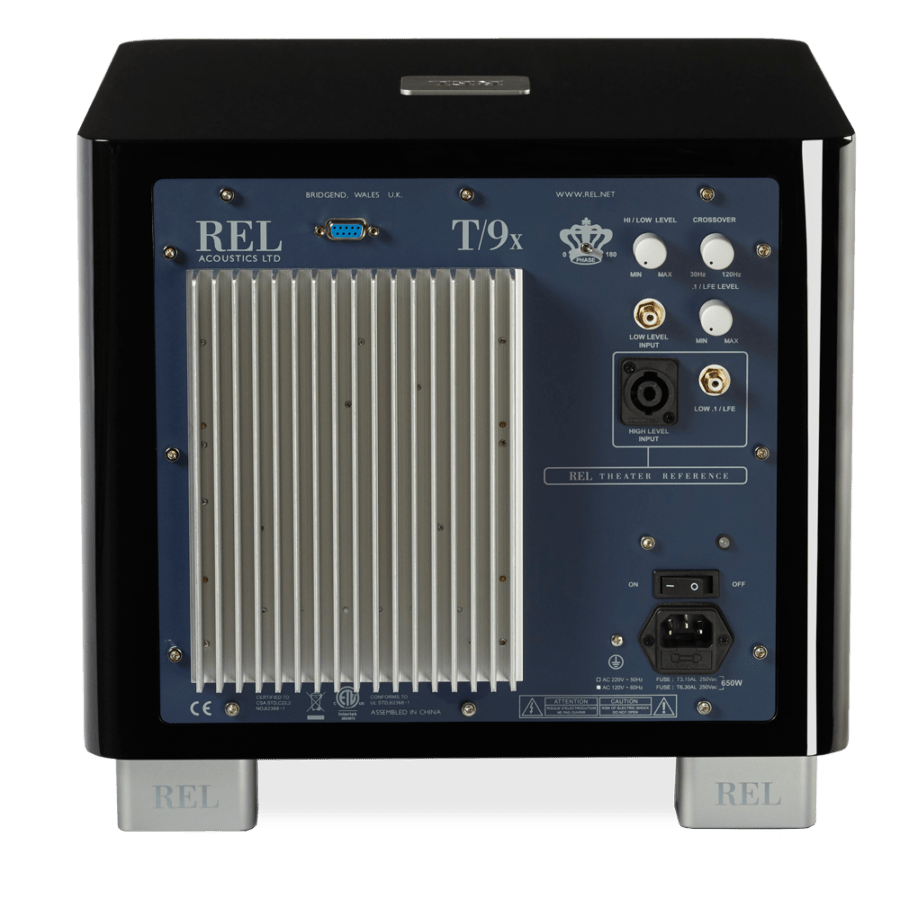

High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA
N/A
300 watts (RMS)
Class A/B

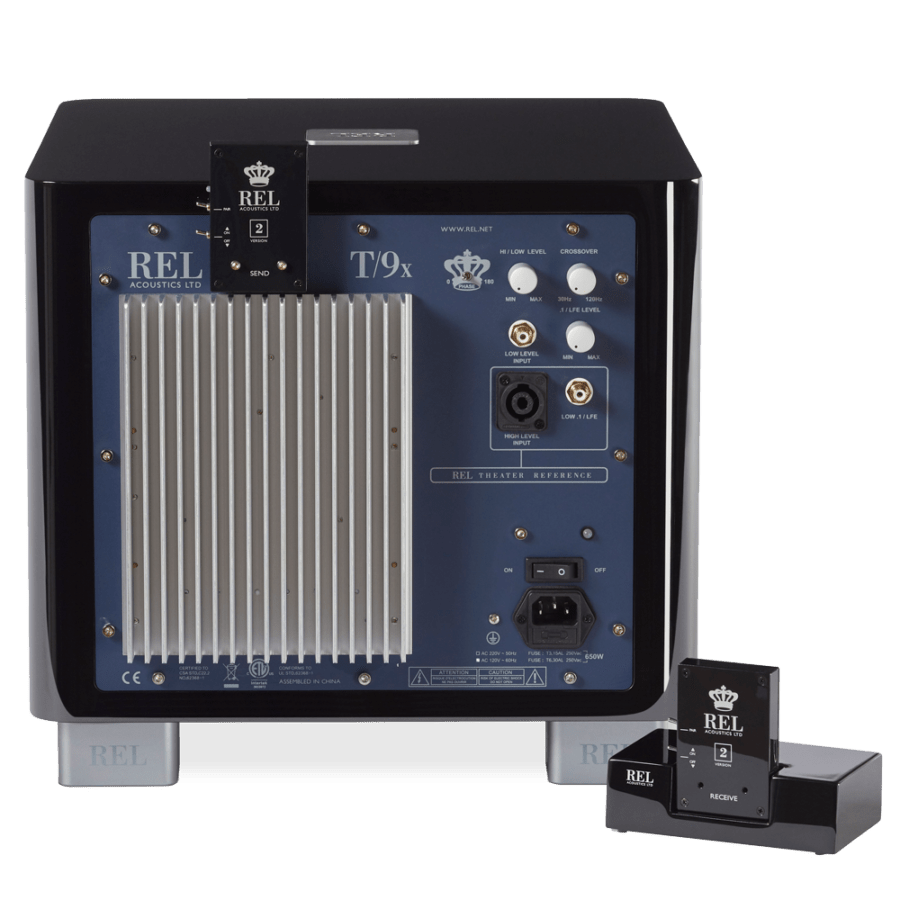

REL Arrow (sold separately)
N/A
Piano Black Lacquer, Gloss White Lacquer 5 coats
Protection System
Yes
Yes
Yes
220-240 volts, 110-120 volts for certain markets
3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation
Supplied Accessories
Yes
Yes (10 Meters Nominal)
-
Yes
